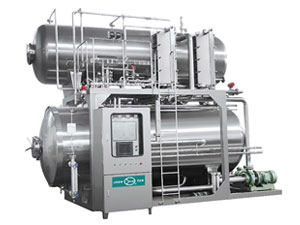

Hot water recovery side spray sterilization tank

Detail Description

Jhenten production of various types of high quality automatic program control sterilization tank, fully focus on the user's point of view, with high efficiency, low consumption, easy to operate, convenient maintenance and other characteristics. Our advantage is to ensure the premise of food safety, with a reasonable sterilization process to maximize the customer's products to maintain the original flavor and good taste.

Main specifications of each type of sterilization tank

Hot water recovery side spray sterilization tank
Application
It is suitable for inflatable aluminum foil bags, plastic cups and other products that require strict maintenance of packaging appearance. Compared with those that do not recycle hot water, it can save more than 50% steam.

Model	Sterilization tank diameter(mm)	Barrel length(mm)	Effective sterilization volume(WxHxL)	In and out material lorm	Control form
CPZ1540	1500	4000	0.85m x 1m x 4m=3.4m³	Electric / Marwal	Fully automatic
CPZ1330	1300	3000	0.76m x 0.85m x 3m= 1.9m³	Ectric/Manual	Fully automatic
CPZ1130	1100	3000	0.59m x 0.69m x 3m=1.2m³	Manual	Fully automatic

Hot water recovery type drenching sterilization tank
Application
It is suitable for regular shape products such as cans and glass bottles, and can save more than 50% steam compared with those that do not recycle hot water.

Model	Sterilization tank diameter(mm)	Barrel length(mm)	Effective sterilization volume(WxHxL)	In and out material form(WxHxL)	Control form
LSZ1330	1300	3000	0.9m x 0.9m x 3m=2.4m³	Ectric / Manual	Fully automatic / Manual
LSZ1230	1200	3000	0.8m x 0.8m x 3m= 1.9m³	Electric / Manual	Fully automatic / Manual
LSZ1125	1100	2500	0.7m x 0.7m x 2.5m=1.2m³	Ectric / Manual	Fully automatic / Manual
LSZ0920	900	2000	0.6m x 0.6m x 2m=0.72m³	Manual	Fully automatic / Manual

All - water double - tank sterilizer
Application
Suitable for the product of vacuum soft packaging, the sterilization temperature rises rapidly, the maximum limit maintains the product flavor characteristic, the production efficiency is the highest in each kind of sterilization tank.

Model	Sterilization tank diameter(mm)	Barrel length(mm)	Effective sterilization volume(WxHxL)	In and out material form	Control form
SJZ1330	1300	3000	0.9m x 0.9m x 3m=2.4m³	Ectric / Manual	Fully automatic / Manual
SJZ1230	1200	3000	0.8m x 0.8m x 3m=1.9m³	Ectric / Manual	Fully automatic / Manual
SJZ1125	1100	2500	0.7m x 0.7m x 2.5m=1.2m³	Ectric / Manual	Fully automatic / Manual
SJZ0920	900	2000	0.6m x 0.6m x 2m=0.72m³	Manual	Fully automatic / Manual

Full rotary duplex tank sterilizer
Application
It is suitable for the products that need to stir the materials in the packaging during the sterilization process, such as babaocongee, secondary bacteria-killing milk and cereal beverage.

Model	Sterilization tank diameter(mm)	Barrel length(mm)	Effective sterilization volume(WxHxL)	In and out material form	Control form
SHZ1330	1300	3000	0.9m x 0.9m x 3m=2.4m³	Manual	Fully automatic / Manual
SHZ1230	1200	3000	0.8m x 0.8m x 3m=1.9m³	Manual	Fully automatic / Manual
SHZ1125	1100	2500	0.7m x 0.7m x 2.5m=1.2m³	Manual	Fully automatic / Manual
SHZ0920	900	2000	0.6m x 0.6m x 2m=0.72m³	Manual	Fully automatic / Manual

Online Enquiry

Welcome to send an online inquiry! If you have any suggestions or questions about our products, you can Email us.info@jhenten.com, also feedback through this inquiry; we will reply to you within 24 hours. (Monday to Friday, 9:00-17:30)
