Magnetic Agitator Mixing Tank

Magnetic Agitator Mixing Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements

Detail Description

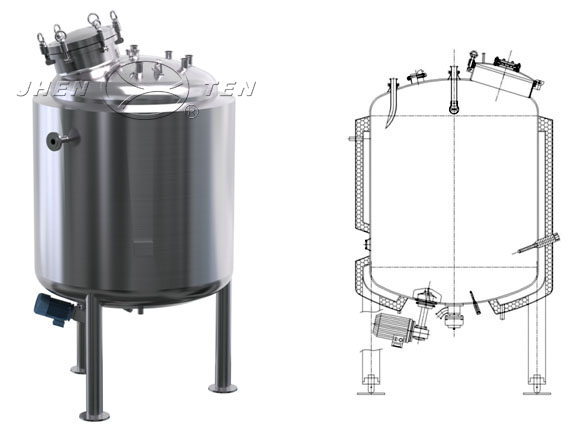

Full Jacket Magnetic Stirring Tank

JHENTEN magnetic agitation tank, the bottom of the magnetic stirring device in the bottom of the tank, belongs to the aseptic tank.Magnetic stirring tank and tank with different head structure form, the tank can jacketed form or combination of single root tree different requirements;Configuration magnetic stirring bottom or side into the type, can achieve the CIP and SIP.

Tank Optional Configuration

Magnetic agitator mixing tank can configure aseptic air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.

Application
• Can be used as storage Tank, mixing tank, temporary Storage Tank, mixing tank, etc., Used in liquid materials’ mixing and storage such as food, dairy products, fruit juice beverage, pharmaceutical, chemical and biological engineering.

Feature
• Welding die static sealing of sleeve to replace dynamic mechanical seal, completely solve the problem of dynamic mechanical seal leakage, so there is no leakage, no external pollution, safety and simple structure, easy disassembly, easy to clean, no dead corner.
• At the bottom of the device, in the case of less material can be stirring, mixing blade design is unique, appropriate mixing work speed of 20 r/min to 400 r/min, can adapt to all kinds of different material mixing,
• Stirring speed adjust by frequency converter, to meet the requirements of the various process of stirring speed.
• Volume 50 l ~ 20000 l, and other specifications, according to the actual needs of customers.

Design Parameter

Designpressure	-0.1MPa～0.6MPa
Design temperature	Accordingto customers’ requirement（0℃～160℃）

Material

Liner	304、316L
Jacket	304
Insulation	Rock wool or PU
Feet	304

Connection

In-outlet

Tri-clamp, Flange

Surface Finish

FinishType	Mechanicalpolishing, electrolytic polishing, sand blasting, pickling
Polishingprecision	Inner surface Ra≤0.3μm， Outer surface Ra≤0.6μm

Normal Model And Main TechnicalParameters

Parameters		Model	JTRCL—150	JTRCL—300	JTRCL—500	JTRCL—800	JTRCL—1000
Effectivevolume：L			150	300	500	800	1000
Barrel	Diameter：mm		Φ550	Φ750	Φ900	Φ1000	Φ1100
Barrel	Height：mm		650	700	650	1000	1000
Agitator	Power：kW		0.14	0.25	0.75	0.75	1.5
Agitator	RPM：r/min		20～400（The design canbe adjusted according to customer use condition）

Theabove-mentioned data is the standard, for reference only.It can customizeaccording to customer's requirements.
