JTRFY reactor be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

Detail Description

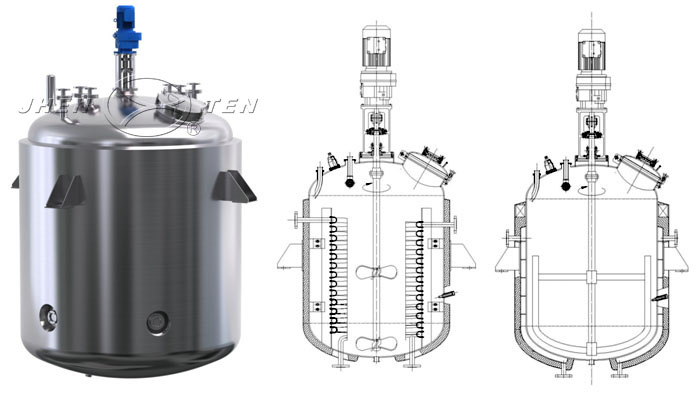

Inside Pipe coil Reactor                           Full Jacketed Reactor
(Three blade propeller agitator)  (Anchor frame agitator)


JTRFY reactor be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.
Jhenten reactor using vertical circular tanks, jacket can be made into a dimple jacket, coil jacket or the whole jacket, can heating or cooling, made of 316L or 304 stainless steel ,inside surface electrolytic mirror polishing or mechanical polishing, the outer surface adopts 304,all welded surface mirror or inferior smooth processing; Tanks welds adopt flanging process arc transition, smooth and easy to clean no dead corner, beautiful appearance.

Tank Optional Configuration

Reactor can configure aseptic air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.

Application
• Apply to petrochemical, fine chemistry, rubber industry, pesticide, dye, bio-pharmaceuticals and beverage, to complete the vulcanization, hydrogenation, alkylation, polymerization, condensation process.


Feature

• Reacor made of 316L or 304 has excellent mechanical properties, can bear high pressure, also can withstand the impact of the massive solid materials when feeding;With rapid heating, high temperature resistant, corrosion resistance, no rust, health, no pollution, etc.
• Agitator with anchor type, frame type, impeller or turbine;using cycloidal reducer, gear reducer, and frequency control;Mechanical seal sealing device can use health level;Can use jacket, half pipe coil, cooling/heating coil structure, heating mode with steam, electric heating, heat conduction oil;Can be arbitrarily selected according to the user's technique.
• Reactor has 600L and 20000L, and other specifications, according to the actual requirment of customers.

Design Parameter

DesignPressure

(-0.1MPa~1.6MPa)

Design
temperature

According tocustomers’requirement(0℃~160℃)


Material

Liner

304、316L

Jacket

304

Insulation

Rockwool or PU

Feet

304


Connection

In-outlet

Tri-clamp, Flange


Surface finish

FinishType

Mechanicalpolishing, electrolytic polishing, sand blasting, pickling

Polishingprecision

Inner surface Ra≤0.4μm,
Outer surface Ra≤0.6μm


Normal Model And MainTechnical Parameters

Parameters Model JTRFY—600 JTRFY—1000 JTRFY—2000 JTRFY—3000 JTRFY—4000 JTRFY—5000
Effectivevolume:L 600 1000 2000 3000 4000 5000

Barrel

Diameter:mm Φ900 Φ1100 Φ1300 Φ1600 Φ1700 Φ1800
Height:mm 900 1000 1500 1500 1800 1800

Agitator

Power:kW 1.1 1.5 2.2 2.2 3 4
RPM:r/min 200(Push type)or60(Anchor frame)(The design canbe adjusted according to customer use condition)


JTRFY—6000 JTRFY—8000 JTRFY—10000 JTRFY—12000 JTRFY—15000 JTRFY—20000
6000 8000 10000 12000 15000 20000
Φ1900 Φ2000 Φ2200 Φ2400 Φ2600 Φ2800
2000 2200 2400 2500 2700 3000
4 5.5 7.5 7.5 11 11
200(Push type)or60(Anchor frame)(The design canbe adjusted according to customer use condition)
The above-mentioned data is the standard, for reference only.It can customizeaccording to customer's requirements.
