JTRPG Mixing Tank

Full Jacket Magnetic Stirring Tank

JTRPG Mixing Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

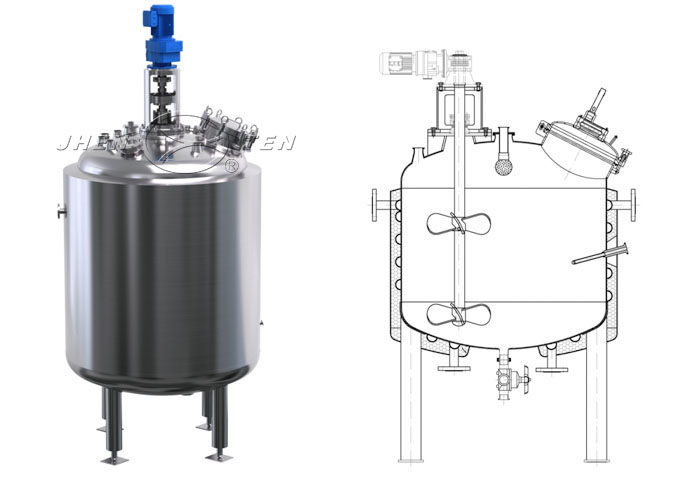

The Mixing Tank adopts Vertical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank using circular arc transition, without dead corner, easy to clean. Single layer, double layer(insulation for tank and bottom head) or Jacket(tank and bottom head have jacket and insulation), equipped with mechanical stirring according to customers’ requirement.

Tank Optional Configuration

The body of Mixing Tank can configure aseptic air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.

Application
• Can be used as Storage Tank, mixing tank, temporary Storage Tank, mixing tank, etc., Used in liquid materials’ mixing and storage such as medicine, food, fruit juice beverage, dairy products, seasoning, brewing, beer, pharmaceutical, chemical and biological engineering.

Feature

• Volume:100L~5000L and multiple specification, also can design and manufacture according to customers’ requirement.
• Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has full jacketed、half-pipe coil jacketed, dimple jacketed and plate coils. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).
• The connection adopt Tri-clamp, the tanks’ inner layer use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can polishing, wire drawing and sand blasting according to customers’ requirement.
• According to the requirements of production and processing, can design with low heating, cooling, high-speed mixing system, sealing pressure system, vacuum system, measuring system and so on.
• According to different mixing materials and requirements to the mixing effect of the structure of impeller can adjust the turbine type design, paddle, anchor type, frame type, screw conveyor and so on..

Design Parameter

Material

Connection

Surface Finish

Normal Model And Main Technical Parameters
