Solid-Liquid Separation Module

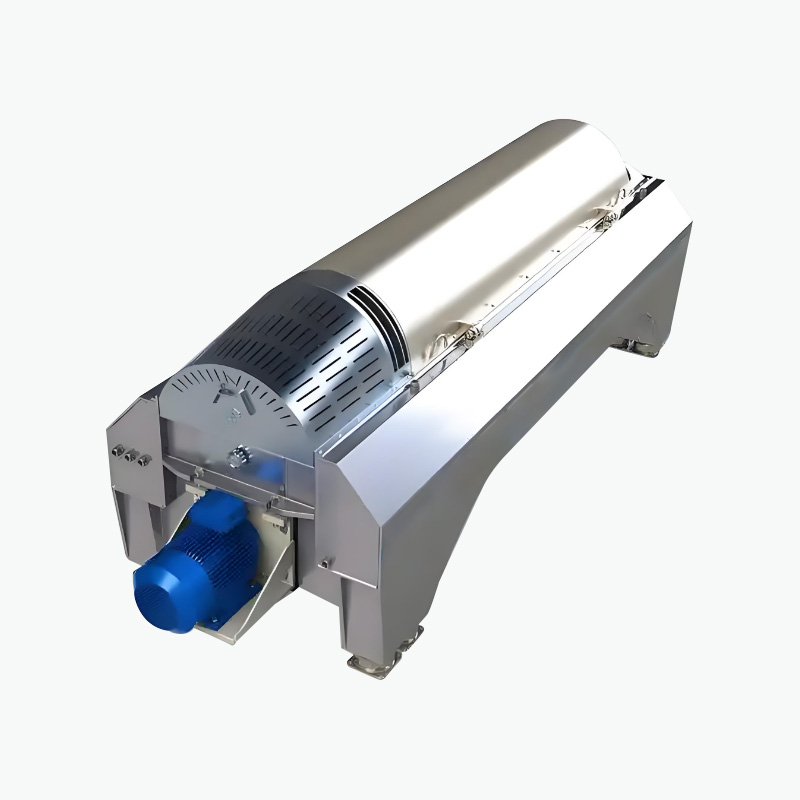

Decanter centrifuge

Featuring dual-motor differential drive technology, this unit achieves a separation factor ≥4000 g with solid phase moisture content ≤15%. Constructed with duplex steel bowls, it is specifically engineered for high-solids processing applications including bone broth residue separation and coffee slurry de-pulping.

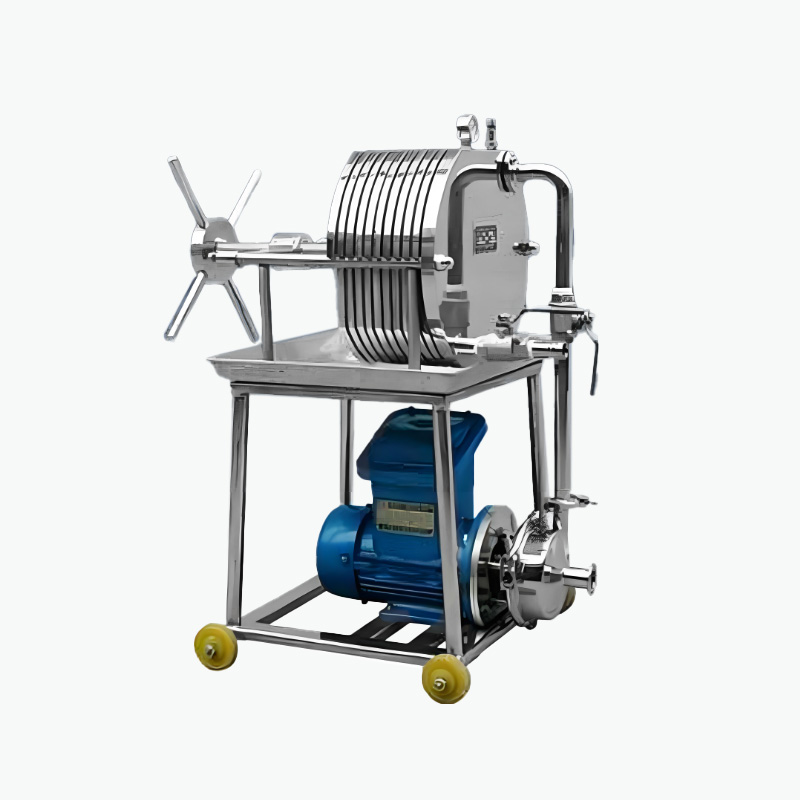

Plate and Frame filter press

Offering filtration areas from 5-200 m² with pressure tolerance ≤0.6 MPa, this system features adjustable filter cloth precision and integrated automatic back-pulse cleaning for efficient coarse filtration. The quick-release frame design is specifically engineered for primary clarification processes including tea infusion pre-filtration and coffee extract purification.

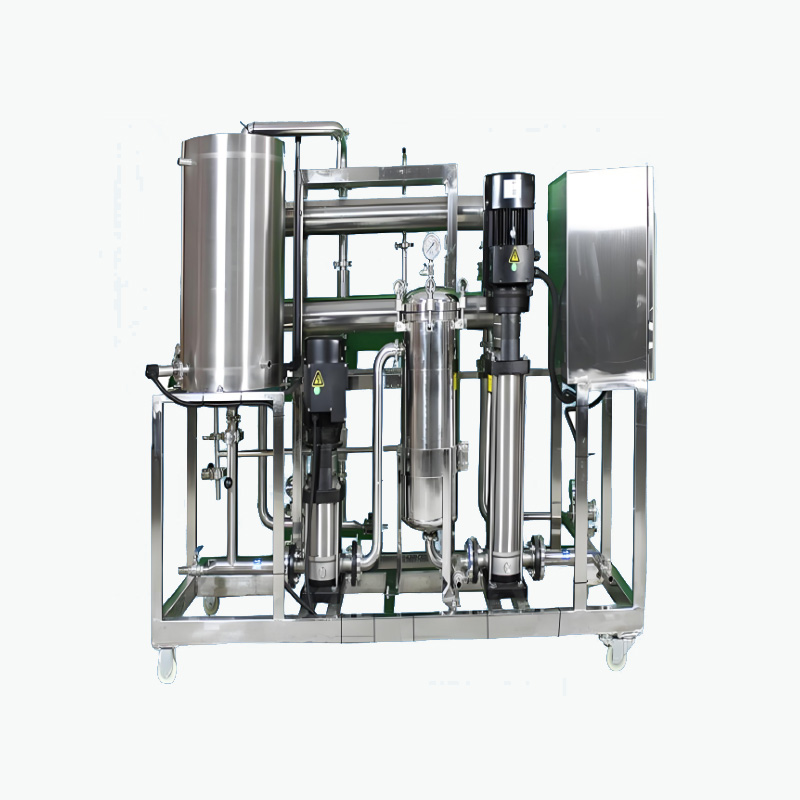

Membrane Separation Unit

Featuring heat-resistant ceramic membranes and high-flux organic ultra-filtration membrane, this integrated system employs cross-flow filtration with automated pulse cleaning. It achieves ≥95% rejection rates for pigments and macromolecular proteins, specifically engineered for astringency removal in tea concentrates and deodorization refinement of bone extracts.
